Y412-22/44/88-L Wireless Sync Switch Datasheet

• Back to Product List
• User Guide

Y412-22-L (2-channel)	Y412-44-L (4-channel)	Y412-88-L (8-channel)

Contents

1. Overview
2. Ordering Information
3. Key Features
4. Technical Specifications
5. Interfaces and Indicators
6. Mechanical and Environmental
7. Installation and Wiring
8. Important Notes

---

1. Overview

The Y412 series is a LoRa-based wireless sync switch for dry-contact input acquisition and relay output synchronization. It is designed for fast field deployment with minimal setup and is a practical replacement for long cross-area control wiring.

• Y412-22-L: 2DI / 2DO
• Y412-44-L: 4DI / 4DO
• Y412-88-L: 8DI / 8DO

The series supports master/slave mode, bidirectional follow or unidirectional feedback, and momentary or latching control. Typical applications include pump and valve interlock, lighting group control, and remote start/stop.

---

2. Ordering Information

Model Naming

Y412-XX-L
  |   |  `-- L: LoRa wireless communication
  |   `----- XX: channel count (22 / 44 / 88)
  `--------- Y412: wireless sync switch series

Model Matrix

Model	DI Channels	DO Channels	Description
Y412-22-L	2	2	Dual-channel sync switch
Y412-44-L	4	4	Four-channel sync switch
Y412-88-L	8	8	Eight-channel sync switch

3. Key Features

1. 2 / 4 / 8-channel options - Common control logic across the series for easy model selection
2. Long-range wireless link - LoRa modulation with up to 10 km in open area, depending on antenna and site conditions
3. Minimal setup - Default DIP settings allow fast commissioning, with channel and mode selection handled on site
4. Multiple operating modes - Supports master/slave, unidirectional or bidirectional behavior, and momentary or latching output control
5. Local push-buttons - Each channel includes a local key for commissioning and emergency operation
6. Dry contact / NPN input - Compatible with push-buttons, relay contacts, and common sensor outputs
7. Form A relay output - Contact rating up to 7A @ 250VAC or 7A @ 30VDC
8. DIN rail mounting - Standard 35 mm DIN rail format for control cabinet installation

---

4. Technical Specifications

Wireless

Parameter	Specification
Operating frequency	410.125 to 493.125 MHz (ISM)
Transmit power	30 dBm (max. approx. 1W)
Receiver sensitivity	-148 dBm @ 2.4 Kbps
Max. range	10 km (open area, 5 dBi antenna, 2 m height)
Channels	32 (set by DIP switches 1 to 5)
Air data mode	Range priority (default) / balanced / response priority
Antenna connector	SMA

Electrical

Parameter	Specification
Supply (DC version)	8 to 28V DC
Supply (AC version)	85 to 265V AC
Average current	70 mA @ 12V DC
TX current	290 mA @ 12V DC
Current per energized relay	15 mA @ 12V DC
DI input type	Dry contact / NPN
DO output type	Form A relay (NO + COM)
Relay contact rating	7A 30V DC / 7A 250V AC

---

5. Interfaces and Indicators

Port Description

• DI: digital input terminals (2 / 4 / 8 channels, depending on model)
• COM: common terminal for DI
• DO COM: relay common terminal
• DO NO: relay normally open terminal
• RS485 A/B/G: configuration and commissioning interface
• Power terminals:
  • DC version: V+ / V- / PE
  • AC version: L / N / PE

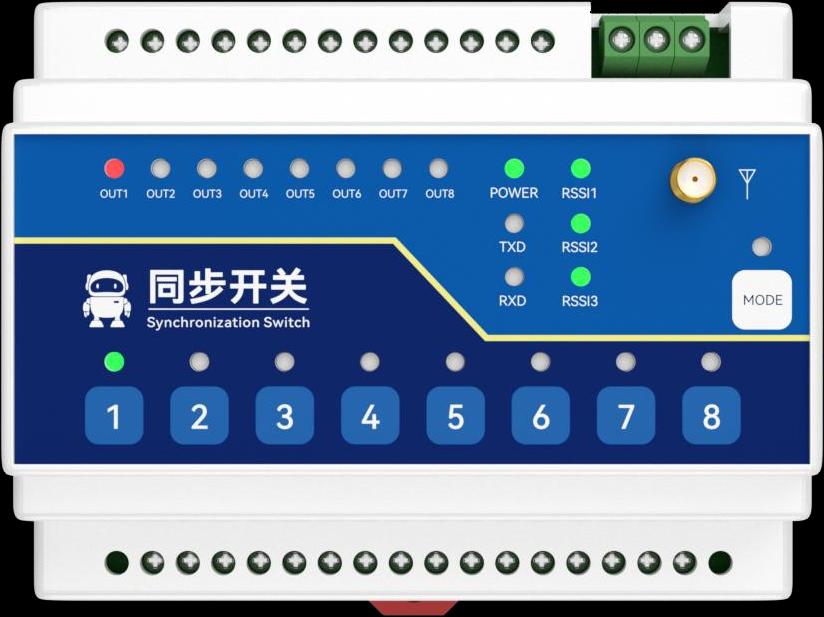

LED Indicators

LED	Color	Description
OUT1 to OUT8	Red	Relay output status for each channel
POWER	Green	Power status
TXD / RXD	Green	Wireless transmit / receive activity
RSSI1 to RSSI3	Green	Signal strength level
MODE	Blue	Mode or encryption status

---

6. Mechanical and Environmental

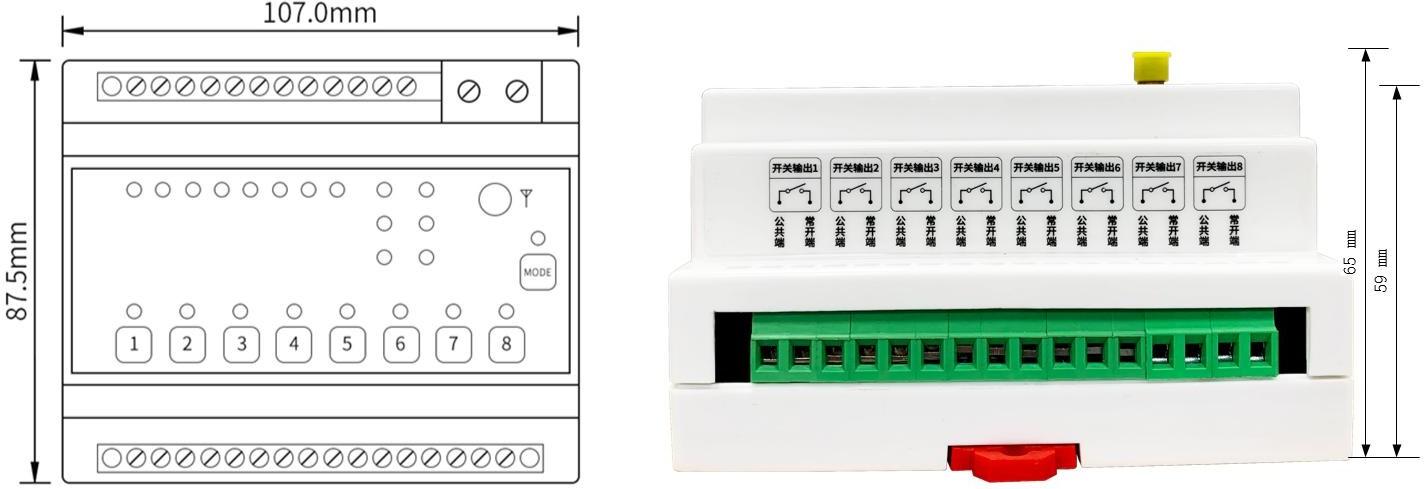

Mechanical Specifications

Parameter	Y412-22-L	Y412-44-L	Y412-88-L
Dimensions	108 x 87.5 x 65 mm	108 x 87.5 x 65 mm	108 x 87.5 x 65 mm
Weight (DC)	184 g +/- 5 g	196 g +/- 5 g	226 g +/- 5 g
Weight (AC)	194 g +/- 5 g	206 g +/- 5 g	236 g +/- 5 g
Operating temperature	-40 to +85 degC	-40 to +85 degC	-40 to +85 degC
Operating humidity	5% to 95% RH, non-condensing	5% to 95% RH, non-condensing	5% to 95% RH, non-condensing
Storage temperature	-60 to +125 degC	-60 to +125 degC	-60 to +125 degC
Storage humidity	5% to 95% RH, non-condensing	5% to 95% RH, non-condensing	5% to 95% RH, non-condensing
Mounting	35 mm DIN rail	35 mm DIN rail	35 mm DIN rail

---

7. Installation and Wiring

Power Wiring

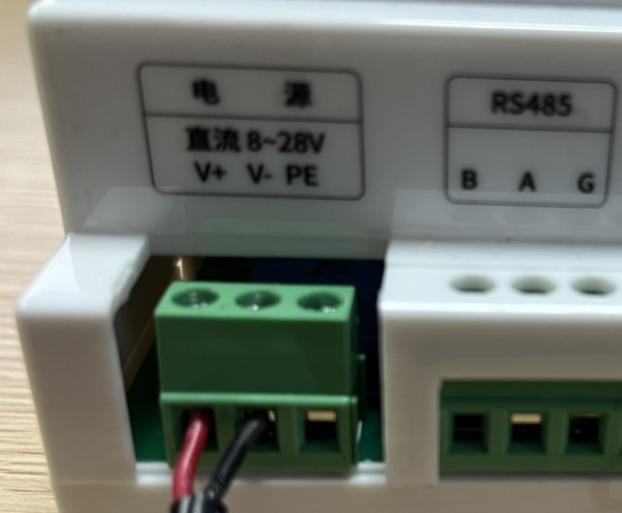

• DC version: connect V+ to positive, V- to negative, and PE to protective earth

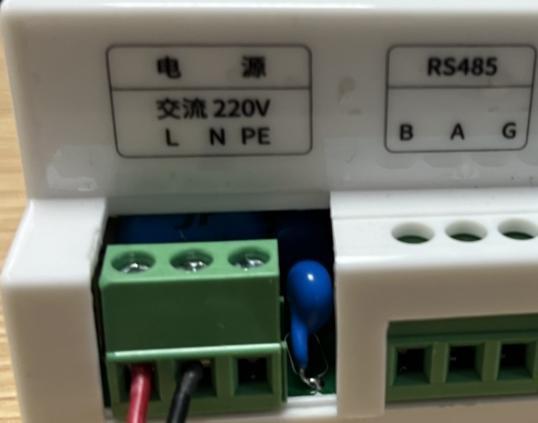

• AC version: connect L to live, N to neutral, and PE to protective earth

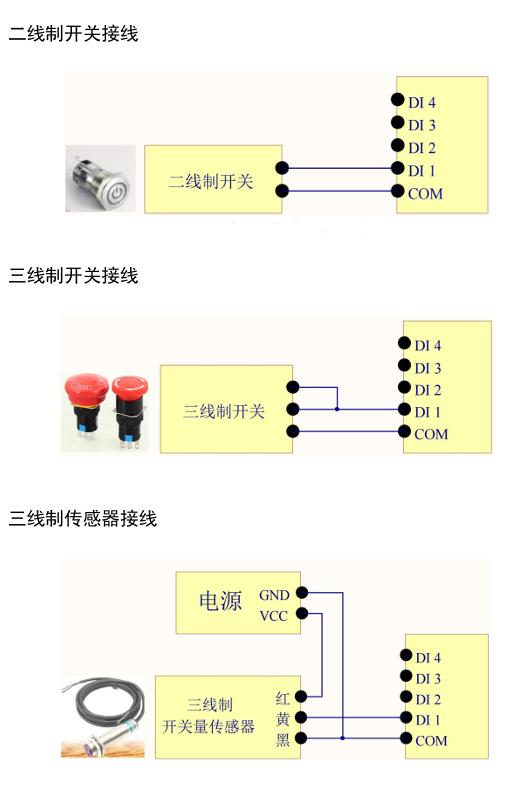

DI Wiring

Supports 2-wire switches, 3-wire switches, and 3-wire sensors.

Installation Recommendations

1. Keep the same channel setting on all devices in the same communication group (DIP switches 1 to 5).
2. Keep the antenna away from large metal surfaces and strong interference sources.
3. Complete power and antenna wiring before setting the mode DIP switches.
4. For first-time deployment, validate a two-device link first, then expand to one-master/multi-slave operation.

---

8. Important Notes

1. DIP-based commissioning - The Y412 series is mainly configured through DIP switches and local keys. For field setup, refer to the User Guide.
2. Group consistency - Devices in the same group should use the same channel and key operating mode, otherwise linkage may fail.
3. Range vs. response - Response-priority mode provides faster action with shorter range, while range-priority mode favors distance.
4. Advanced parameters - Timeout reset and host-side parameters can be configured through RS485 or serial tools when required.

---

• Manufacturer: Hunan YenGear Tech Co., Ltd.
• Address: Room 21014, Building 1, Fudi Xingguang Tiandi, Yingxin Road, Yuhua District, Changsha, Hunan, China
• Email: hi@yengear.com
• Website: www.yengear.com
