Y402-4411-L LoRa Wireless I/O System Datasheet

• Back to Product List

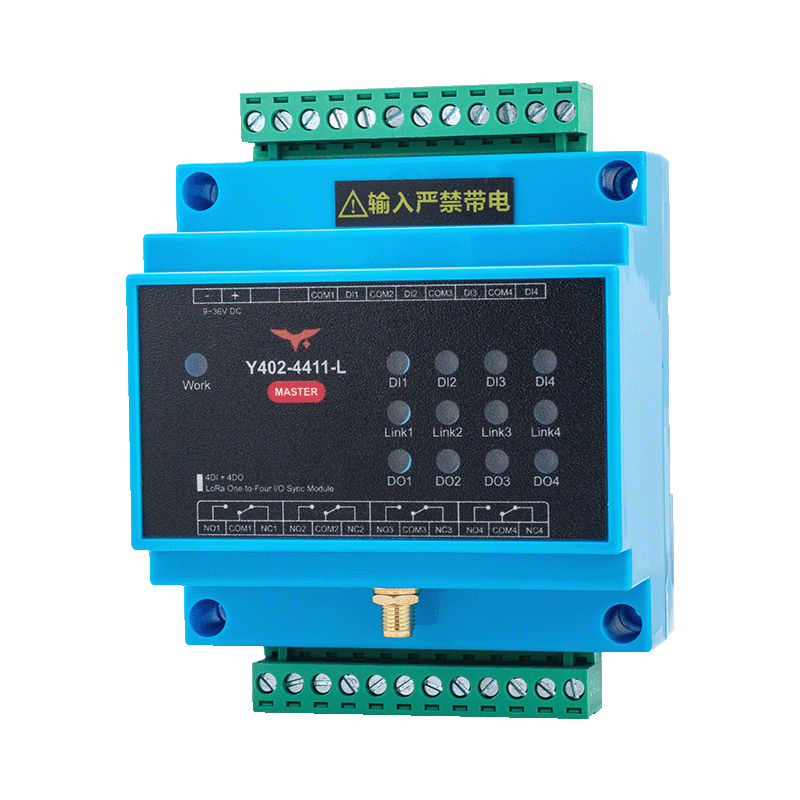

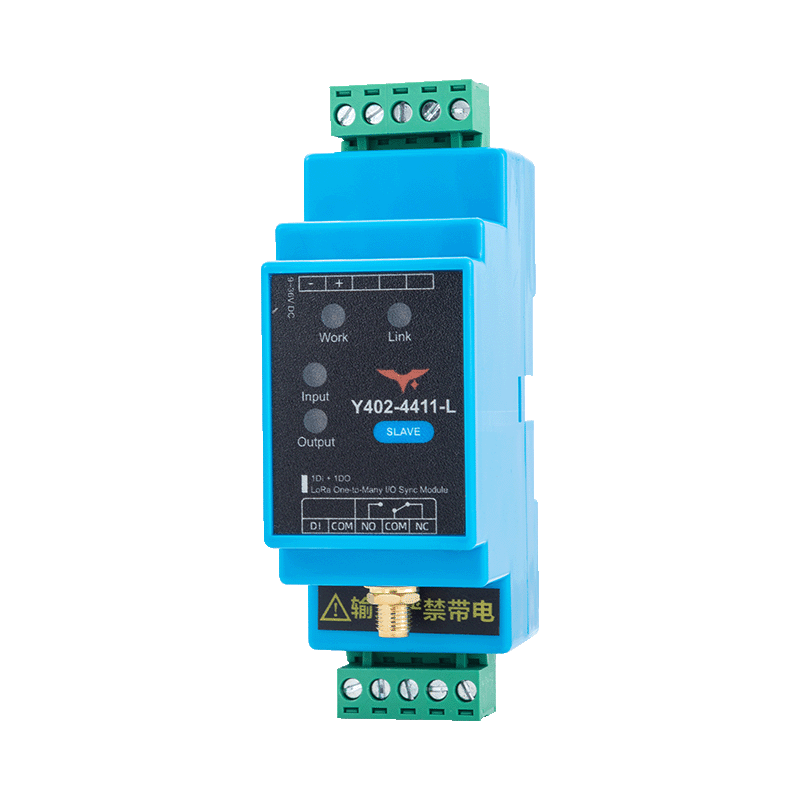

Y402-4411-L Master	Y402-4411-L Slave

Contents

1. Overview
2. Ordering Information
3. Key Features
4. Technical Specifications
5. Interfaces and Indicators
6. Mechanical and Environmental
7. Installation and Wiring
8. Important Notes

---

1. Overview

The Y402-4411-L is a one-to-many wireless I/O system based on LoRa modulation with a 1-to-4 channel mapping design. It consists of a 1DI/1DO master unit and a 4DI/4DO slave unit. One master input can drive four slave outputs simultaneously, making it suitable for single-point triggering and multi-point response.

Operating Logic

• Master to slave: when the master DI is closed, all four DO channels on every slave unit energize at the same time
• Slave to master: when any DI on any slave unit is closed, the master DO energizes
• The master output resets only after all DI channels on all slave units return to open
• Supports bidirectional transmission with 1-to-4 channel mapping

Channel Mapping

Direction	Mapping
Master to slave	Master channel 1 input -> Slave channels 1 to 4 outputs
Slave to master	Any slave channel 1 to 4 input -> Master channel 1 output

---

2. Ordering Information

System Components

Device	Model	Role	Channels	Dimensions
Master	Y402-4411-L	Central control unit	1DI/1DO	88 x 37 x 59 mm
Slave	Y402-4411-L	Remote terminal unit	4DI/4DO	88 x 72 x 59 mm

System configuration:

• Basic system: 1 master + 1 slave (factory paired)
• Expanded system: 1 master + N slaves

Model Naming and Package

Model Naming

Y402-4411-L
  |    |   `-- L: LoRa wireless communication
  |    `------ 4411: 1-to-4 channel mapping
  `----------- Y402: one-to-many wireless I/O system series

Package Contents

Qty.	Item
1	Y402-4411-L master module
1	Y402-4411-L slave module
2	470 MHz magnetic-mount antennas
2	DIN rail clips
1	Quick reference guide
1	Warranty card

---

3. Key Features

1. 1-to-4 channel mapping - One master input drives four slave outputs
2. One-to-many architecture - One master controls multiple slave units
3. Long-range communication - Up to 5000 m in open area
4. Bidirectional transmission - Supports master-to-slave and slave-to-master signaling
5. Scalable system - Additional slave units can be added as required
6. Wide supply range - 9 to 36V DC with reverse-polarity protection
7. Relay output - SPDT relay, rated at AC 277V 5A / DC 28V 5A
8. Universal DI - Supports dry contact and NPN inputs
9. Status indication - LEDs for power, link, input, and output status
10. Industrial design - Hardware watchdog and 35 mm DIN rail mounting

---

4. Technical Specifications

Wireless

Parameter	Specification
Frequency band	398 to 525 MHz
Communication range	5000 m (open area)
Antenna connector	SMA
Standard antenna	470 MHz magnetic-mount antenna

Electrical

Parameter	Specification
Supply voltage	9 to 36V DC
Max. power consumption	1.5W (master) / 0.8W (slave)
Master input	1 x NPN signal / dry contact
Master output	1 x SPDT relay
Slave inputs	4 x NPN signal / dry contact
Slave outputs	4 x SPDT relay
Output rating	AC 277V 5A / DC 28V 5A
Operating temperature	-20 to +85 degC
Operating humidity	10% to 90% RH, non-condensing

---

5. Interfaces and Indicators

Master Interfaces

Interface	Description
Antenna	SMA connector for LoRa antenna
Power	DC 9 to 36V input with reverse-polarity protection
Input	1 x passive switch input (DI + COM)
Output	1 x relay output (NO + COM + NC)

Slave Interfaces

Interface	Description
Antenna	SMA connector for LoRa antenna
Power	DC 9 to 36V input with reverse-polarity protection
Input	4 x passive switch input (DI + COM)
Output	4 x relay output (NO + COM + NC)

LED Indicators

LED	Function	Status
Power	System status	On after power-up
Link	Link status	On when the wireless link is established
Input	Input status	On when the corresponding DI is closed
Output	Output status	On when the relay is energized

---

6. Mechanical and Environmental

Mechanical Specifications

Parameter	Master	Slave
Dimensions	88 x 37 x 59 mm	88 x 72 x 59 mm
Weight	Approx. 50 g	Approx. 50 g
Mounting	35 mm DIN rail	35 mm DIN rail
Protection rating	IP20	IP20
Housing material	Flame-retardant plastic	Flame-retardant plastic

---

7. Installation and Wiring

Input Wiring

Mechanical switches (maintained switch, float switch, relay contact):

• Connect directly between DI and COM
• No external power supply is required

NPN signal:

• Emitter -> COM
• Collector -> DI
• Do not connect an external voltage source to the input terminal

Output Wiring

Direct load (<= 1 kW resistive load):

• Wire the load in series with the relay output

High-power load (> 1 kW):

• Use an AC contactor or external power relay

Installation Notes

1. Install the antenna vertically in an open area, about 2 m above ground.
2. Keep the unit away from large metal structures.
3. Tighten the antenna connector securely.
4. Mount the unit inside the control cabinet on a 35 mm DIN rail.
5. Place the master near the center of the coverage area whenever possible.
6. Leave enough space for ventilation.

System Expansion

To add a new slave unit:

1. Power on the new slave.
2. Pair it using the pairing button.
3. The system will recognize and add the device automatically.

---

8. Important Notes

1. Communication mode - Half-duplex communication, not intended for hard real-time control.
2. Frequency range - Recommended operating range is 398 to 525 MHz. Performance may degrade outside this range.
3. Antenna placement - Install the antenna vertically in an open area and keep it away from metal obstructions.
4. Master/slave topology - Only one master unit is allowed in each system, while multiple slave units are supported.
5. 1-to-4 mapping - This model is optimized for single-point trigger and multi-point response in distributed control systems.

---

• Manufacturer: Hunan YenGear Tech Co., Ltd.
• Address: Room 21014, Building 1, Fudi Xingguang Tiandi, Yingxin Road, Yuhua District, Changsha, Hunan, China
• Email: hi@yengear.com
• Website: www.yengear.com
