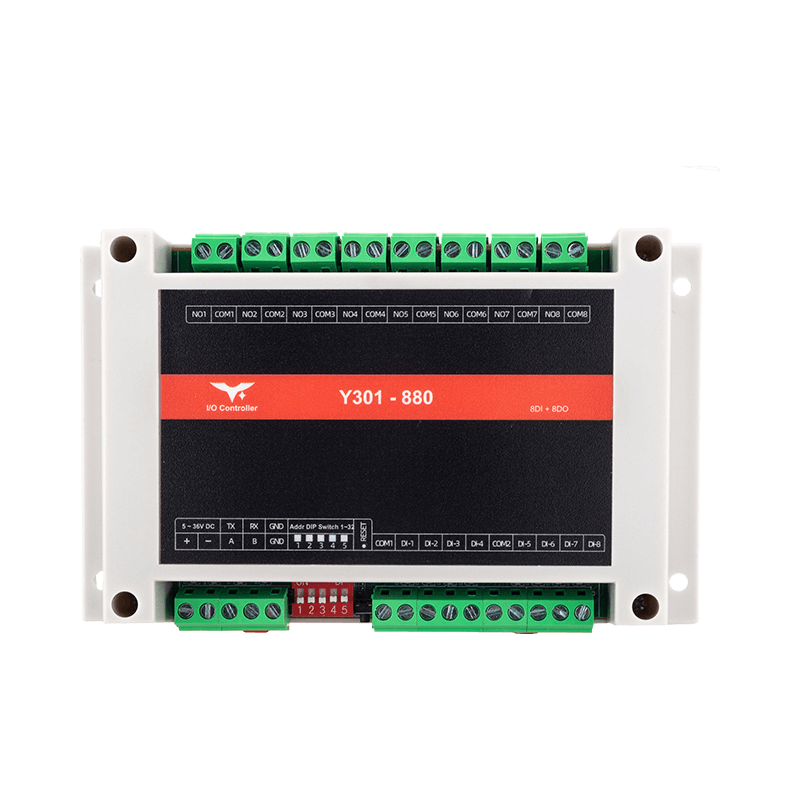

Appearance
Y301-880 I/O Module Specification
Contents
- Overview
- Ordering Information
- Key Features
- Technical Specifications
- Interfaces and Pinout
- Mechanical and Environmental
- Automation Rules
1. Overview
The Y301-880 is the flagship model in the Y301 family. It combines eight opto-isolated digital inputs and eight high-power relay outputs in a 145 x 90 x 40 mm enclosure, delivering the highest Modbus RTU I/O density in the series for PLC expansion, building automation, and large-scale telemetry systems.
| Model | DI | DO | AI | Typical Role |
|---|---|---|---|---|
| Y301-880 | 8 | 8 (SPDT) | - | Multi-zone digital automation |
Product Highlights
- Highest I/O density in the Y301 series for digital-only control
- Independent indicators for all 16 channels plus system status
- Robust automation firmware with up to 16 local rules and output retention
2. Ordering Information
2.1 Model Naming
Y301-XYZ
- XYZ: function combination (
880 = 8DI + 8DO + 0AI)
2.2 Interface Options
All models are available with the following serial interfaces:
| Interface | Description |
|---|---|
| RS485 | Standard version for Modbus RTU multi-drop networks |
| RS232 | Optional version for point-to-point communication |
| TTL | Optional on selected models for direct MCU integration |
2.3 SKU Matrix
| SKU | Description |
|---|---|
| Y301-880 | 8 DI + 8 DO, high-density digital I/O module |
2.4 Package Contents
Module, digital quick reference guide, and warranty card. Optional accessories include a DIN clip, USB-to-RS485 converter, 24 VDC power supply, and shielded RS485 wiring kit.
3. Key Features
- 16-point digital I/O - Eight dry/wet contact DI channels plus eight SPDT relay outputs
- High-power relays - Each channel is rated for 277 VAC / 10 A or 28 VDC / 10 A with independent
COM/NO/NCterminals - Automation engine - Up to 16 local rules covering follow, pulse, timer, logic, and schedule modes
- Scalable addressing - Software Modbus address 1-255 plus a 5-bit DIP offset for panel deployments
- Industrial-grade build - 5-36 VDC input, -40 to +85 C, hardware watchdog, Reload button, and surge-protected communication
4. Technical Specifications
4.1 Electrical and Environmental
| Parameter | Specification |
|---|---|
| Supply voltage | 5-36 VDC |
| Typical current | 260 mA @ 12 V |
| Maximum current | 350 mA @ 12 V (all relays energized) |
| Operating temperature | -40 to +85 C |
| Humidity | 5-95% RH, non-condensing |
4.2 Digital Input
| Item | Specification |
|---|---|
| Channel count | 8 |
| Type | Dry/wet contact, opto-isolated |
| Voltage range | 5-36 V (wet contact mode) |
| Input current | <5 mA per channel |
| Sampling rate | 100 Hz |
| Pulse counter | 32-bit per channel |
| Debounce | 5-255 ms (default 50 ms) |
4.3 Digital Output
| Item | Specification |
|---|---|
| Channel count | 8 x SPDT relays |
| Contact rating | 277 VAC 10 A / 28 VDC 10 A |
| Minimum load | 10 VAC 10 mA |
| Switching time | <10 ms operate / <5 ms release |
| Electrical life | 100k cycles at rated load |
| Output retention | None / soft reboot / full retention |
4.4 Communication
| Item | Specification |
|---|---|
| Interface | RS485 (2-wire), optional RS232 or TTL |
| Protocol | Modbus RTU slave |
| Baud rate | 600-230400 bps (default 9600) |
| Slave address | 1-255 (software) + DIP offset 0-31 |
5. Interfaces and Pinout
5.1 Terminal Overview
| Group | Description |
|---|---|
| Power | V+, V- screw terminals + DC 5.5 x 2.1 mm jack |
| DIP switch | SW1-SW5 (binary address offset) |
| Reload | Hold 3-15 s to restore factory defaults |
| DI | COM+, COM-, DI1-DI8 |
| DO | NCn / COMn / NOn for channels 1-8 |
| Communication | A/B/GND (RS485) or TX/RX/GND (RS232/TTL) |
5.2 Wiring Guidelines
- Use 20-16 AWG power wiring with a 2 A upstream fuse.
- For dry-contact DI, bridge
COM+to the targetDIthrough the external contact. - For wet-contact DI, connect the external 5-36 V reference to
COM-. - For relay outputs driving inductive loads, add an RC snubber for AC loads or a flyback diode for DC loads.
- For RS485, use shielded twisted pair, terminate both ends with 120 ohm resistors, and keep a common reference ground.
6. Mechanical and Environmental
| Item | Value |
|---|---|
| Dimensions | 145 x 90 x 40 mm |
| Mounting | 35 mm DIN clip or screw slots |
| Protection | IP20 |
| Housing | UL94 V-0 flame-retardant plastic |
Keep at least 20 mm clearance above and below, 10 mm on each side, and 60 mm in front for wiring and airflow.
7. Automation Rules
| Mode | Description |
|---|---|
| DI follow | DO mirrors one or more DI states |
| Pulse output | Configurable ON/OFF pulse width |
| Delay control | Programmable ON/OFF delay |
| Cyclic toggle | Periodic ON/OFF cycling |
| Timer/schedule | Calendar-based activation window |
| Button mode | Momentary push-button behavior |
| Logic mode | AND/OR/XOR logic combination |
| Watchdog mode | Automatically resets the DO when the timeout condition occurs |
- Up to 16 rules total, with up to 2 rules per DO channel
- Rules run locally without host polling
- When enabled, output retention stores the last automation state
