Y301-0004/0006/0008 Analog Output Module Specification ​

Y301-0004Y301-0006Y301-0008

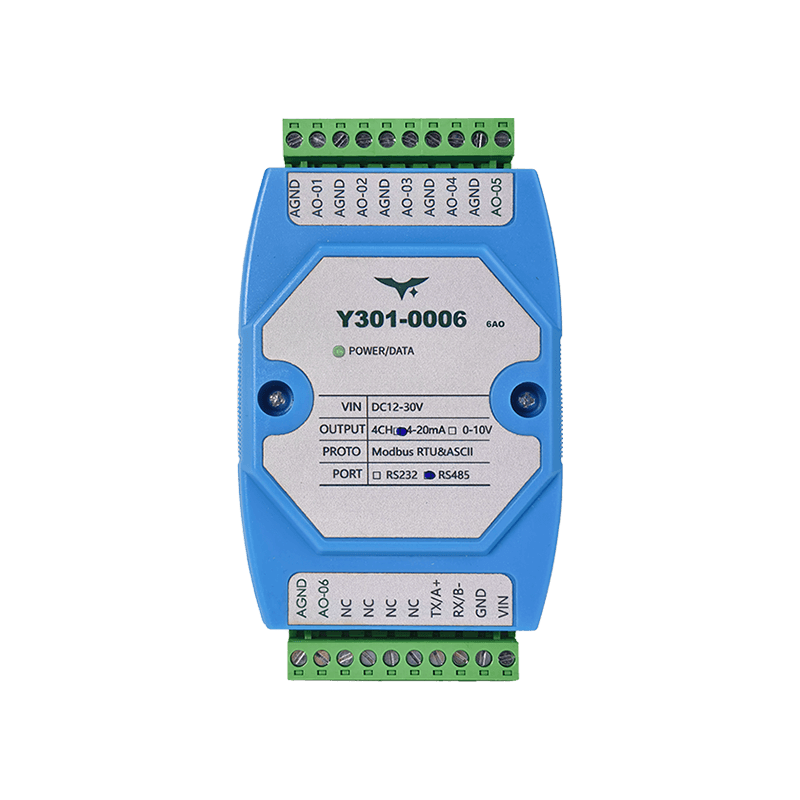

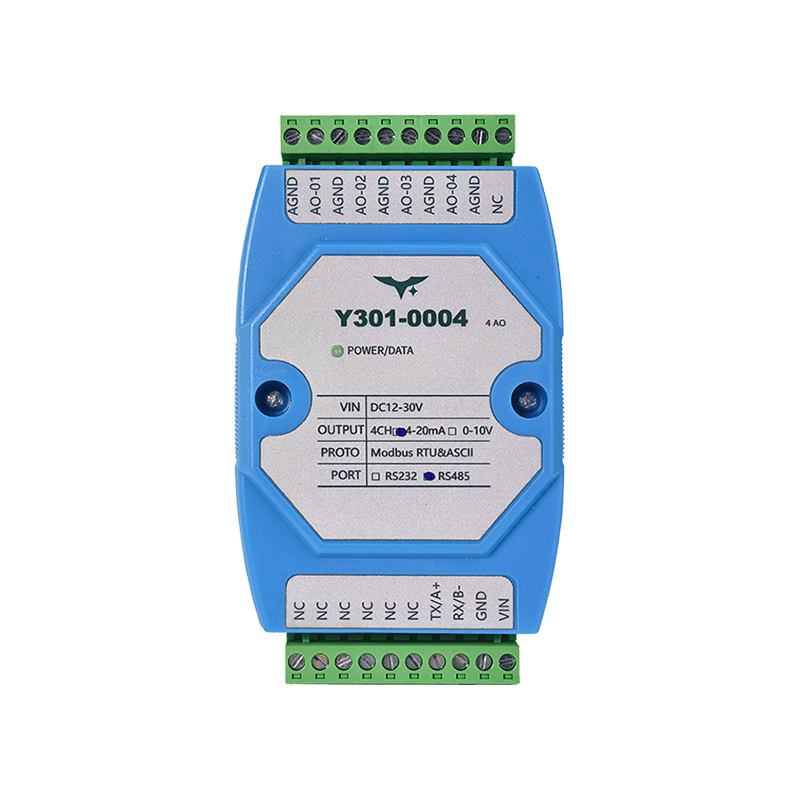

Y301-0004 Product ImageY301-0006 Product ImageY301-0008 Product Image

Contents ​

  1. Overview
  2. Ordering Information
  3. Key Features
  4. Technical Specifications
  5. Interfaces and Pinout
  6. Wiring Guidelines
  7. Communication and Configuration
  8. Diagnostics and FAQ

1. Overview ​

The Y301-0004/0006/0008 are analog output concentrators based on the DAM0800AO-YD platform. They provide deterministic Modbus RTU/ASCII control of 0-10 V and/or 4-20 mA channels for PLCs, SCADA systems, building automation, and lab platforms.

ModelAnalog OutputInterface OptionsTypical Role
Y301-00044 AORS485 / RS232Small HVAC and OEM retrofits
Y301-00066 AORS485 / RS232Mid-size process skids
Y301-00088 AORS485 / RS232High-density analog drive

Product Highlights ​

  • 14-bit DAC with 0.001 V / 0.001 mA resolution
  • Configurable 0-10 V and 4-20 mA outputs, with jumper-selectable combo versions
  • Opto-isolated RS485 plus optional RS232
  • Plug-and-play Modbus integration with address retention and power-loss memory

2. Ordering Information ​

2.1 Model Naming ​

Y301-000X-IF-SIGNAL

  • 000X - 0004 (4 AO), 0006 (6 AO), 0008 (8 AO)
  • IF - RS485 or RS232
  • SIGNAL - voltage only, current only, or combo (0-10 V / 4-20 mA switched by jumper)

2.2 SKU Matrix ​

SKUInterfaceOutput ModeDescription
Y301-0004-RS485-VRS4850-10 V4-channel voltage driver
Y301-0004-RS232-IRS2324-20 mA4-channel current driver
Y301-0004-RS485-CRS4850-10 V / 4-20 mA (combo)Jumper-selectable mixed-use version
Y301-0006-RS485-CRS485Combo6-channel AO
Y301-0006-RS232-CRS232Combo6-channel AO
Y301-0008-RS485-CRS485Combo8-channel AO
Y301-0008-RS232-CRS232Combo8-channel AO

Combo SKUs use internal jumpers to switch each channel between voltage and current output.

2.3 Standard Package ​

Module, quick reference guide, and warranty card. Optional accessories include a DIN-rail 24 V power supply, USB-to-RS485 converter, and shielded harness kit.

3. Key Features ​

  1. High-resolution DAC - Native 14-bit engine with 0.001 V / 0.001 mA output steps
  2. Robust output stage - Directly drives 0-10 V voltage loops or 4-20 mA current loops with fault protection
  3. Flexible protocol support - Modbus RTU, ASCII, and Modbus TCP through a host gateway; address range 1-255
  4. Wide input and isolation - 12-30 VDC supply, opto-isolated RS485, and surge-tolerant design
  5. Power-loss memory - Optional retention restores the last analog output after reboot
  6. JYDAM toolchain - GUI tool for multi-channel writes, batch setpoints, Excel logging, and auto baud-rate discovery

4. Technical Specifications ​

4.1 Electrical and Environmental ​

ParameterSpecification
Supply voltage12-30 VDC
Typical power consumption11 mA @ 24 V (~0.26 W)
IsolationOpto-isolated RS485
Operating temperature-40 to +85 C
Humidity0-95% RH, non-condensing
Dimensions100 x 70 x 35 mm

4.2 Analog Output Specifications ​

ParameterSpecification
Channel count4, 6, or 8 depending on model
Output type0-10 V or 4-20 mA, configurable per channel
Resolution14-bit (16384 steps)
Accuracy+/-0.1% FS
Linearity+/-0.1% FS
Settling time<10 ms
Output impedanceVoltage mode: <10 ohm; current mode: >10 Mohm
Load capabilityVoltage mode: >2 kohm; current mode: <600 ohm

4.3 Communication Specifications ​

ParameterSpecification
InterfaceOpto-isolated RS485, optional RS232
ProtocolModbus RTU, Modbus ASCII, Modbus TCP (via gateway)
Baud rate600-115200 bps (auto-detect)
Address range1-255
Isolation voltage1500 V RMS

5. Interfaces and Pinout ​

5.1 Terminal Layout ​

TerminalDescription
PowerV+, V- (12-30 VDC)
RS485A, B, GND (opto-isolated)
RS232TX, RX, GND (optional)
AO outputAO1+, AO1-, AO2+, AO2-, etc. depending on model
ConfigurationJumpers for voltage/current mode selection

5.2 LED Indicators ​

LEDStatusDescription
PowerSolid greenPower is normal
CommunicationFlashing greenBus activity detected
FaultSolid redFault detected

6. Wiring Guidelines ​

6.1 Power Connection ​

  • Use 18-22 AWG wiring for the 12-30 VDC supply
  • Add a 1 A fuse for overcurrent protection
  • Verify correct polarity before power-on

6.2 Output Connection ​

Voltage mode (0-10 V):

  • Connect the load positive terminal to AO+ and the negative terminal to AO-
  • Load impedance should be greater than 2 kohm for best accuracy

Current mode (4-20 mA):

  • Wire the load in series with the output loop
  • Total loop impedance should be less than 600 ohm
  • Suitable for 2-wire or 4-wire instruments

6.3 Communication Connection ​

RS485:

  • Use shielded twisted pair
  • Add 120 ohm termination resistors at both ends of the bus
  • Connect A to A, B to B, and GND to GND across all devices

RS232:

  • Connect directly to a DTE device
  • Maximum cable length is 15 m

7. Communication and Configuration ​

7.1 Modbus Register Map ​

AddressFunctionDescription
40001AO1 output value0-10000 corresponds to 0-10 V or 0-20 mA
40002AO2 output value0-10000 corresponds to 0-10 V or 0-20 mA
.........
40008AO8 output value0-10000 corresponds to 0-10 V or 0-20 mA

7.2 Configuration Parameters ​

ParameterAddressDescription
Baud rate403010=9600, 1=19200, 2=38400, 3=115200
Address40302Modbus slave address (1-255)
Output mode40303Bitwise voltage/current mode setting for each channel

8. Diagnostics and FAQ ​

8.1 Troubleshooting ​

SymptomPossible CauseSolution
No output responsePower faultCheck supply wiring and input voltage
Communication failureBaud-rate mismatchUse auto baud-rate detection
Poor output accuracyIncorrect load impedanceVerify load impedance requirements

8.2 FAQ ​

Q: How do I change the output mode? A: Use the internal jumper or register 40303 to configure voltage/current mode for each channel.

Q: Which communication protocols are supported? A: Modbus RTU, Modbus ASCII, and Modbus TCP through a gateway are supported.

Q: How does power-loss memory work? A: When enabled, the module restores the last output value after reboot.
